The Monochrome LCD Display

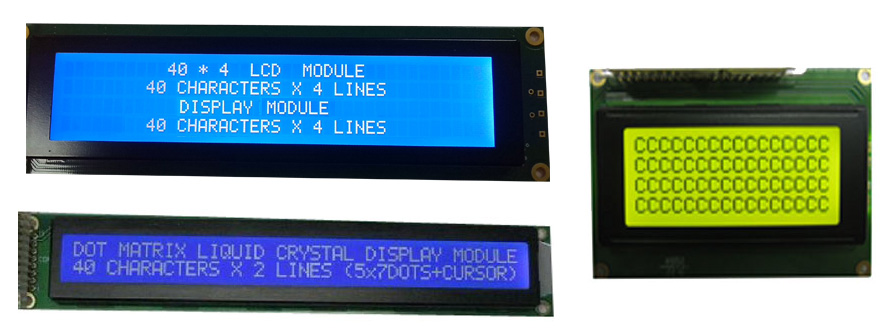

mono LCD display

The backlit monochrome LCD module has for many years been the mainstay solution in a wide range of industrial and commercial applications.

Today it is still a preferred choice for low cost applications where simple text and/or graphic information is being conveyed.

There are various types of these highly reliable easy to use devices i.e. Segmented, Dot Matrix, Graphic and a more recent addition the Ultra-Wide Viewing Display (UWVD) that, allows for a small range of colours to be displayed by utilising silk screening techniques using silk-screening.

All these devices are available in a wide range of sizes and configurations.

They can be customised to satisfy customer requirements.

KEY ATTRIBUTES OF MONOCHROME LCD MODULES –

  • Lowest cost solution for displaying alphanumeric and simple graphic/icon information
  • Low power consumption thus ideal for battery powered applications
  • A wide range of variants to cater for a variety of project requirements –
    • STN – the basic monochrome LCD module technology
    • FRSTN (Fast Response STN) and FFSTN (Film Compensated STN) offer faster response times, sharper images, higher contrast and wider viewing angles.
    • DSTN (Dual Scan STN) for higher image quality via line refresh rate doubling.
    • Vertical Alignment Displays –  a new development in monochrome LCD displays offer true black background, high contrast ratios, sharp image quality and wide viewing angles. An added benefit is that virtually any backlight colour can be utilised to create your desired visual effect.
  • Lower cost and lower power controllers required compared to TFT
  • Lower cost to obtain customised designs that meet your project requirements

MONOCHROME LCD MODULE APPLICATIONS –

With sizes from approximately 1.3″ up to 15″ and various shapes available the range of applications is ever expanding.

Here are just some of the applications TFT displays are suitable for –

  • Domestic appliances
  • Medical equipment
  • Instruments
  • Vending Machines
  • Machine tools
  • Process controllers

Through our Manufacturer and Distributor partners we are able to offer a range of monochrome LCD displays in sizes from xx mm to xx mm.

Our customisation capability enables us to fully support your project requirements.

For more information you can contact us via email – contact-us@ocgdt.com or use our Contact Form
